High Performance Velocity Stacks Yamaha  R9 / MT09 (gen3) / MT09 (gen4) / XSR900 / XSR900GP / Tracer900

High Performance Velocity Stacks Yamaha  R9 / MT09 (gen3) / MT09 (gen4) / XSR900 / XSR900GP / Tracer900

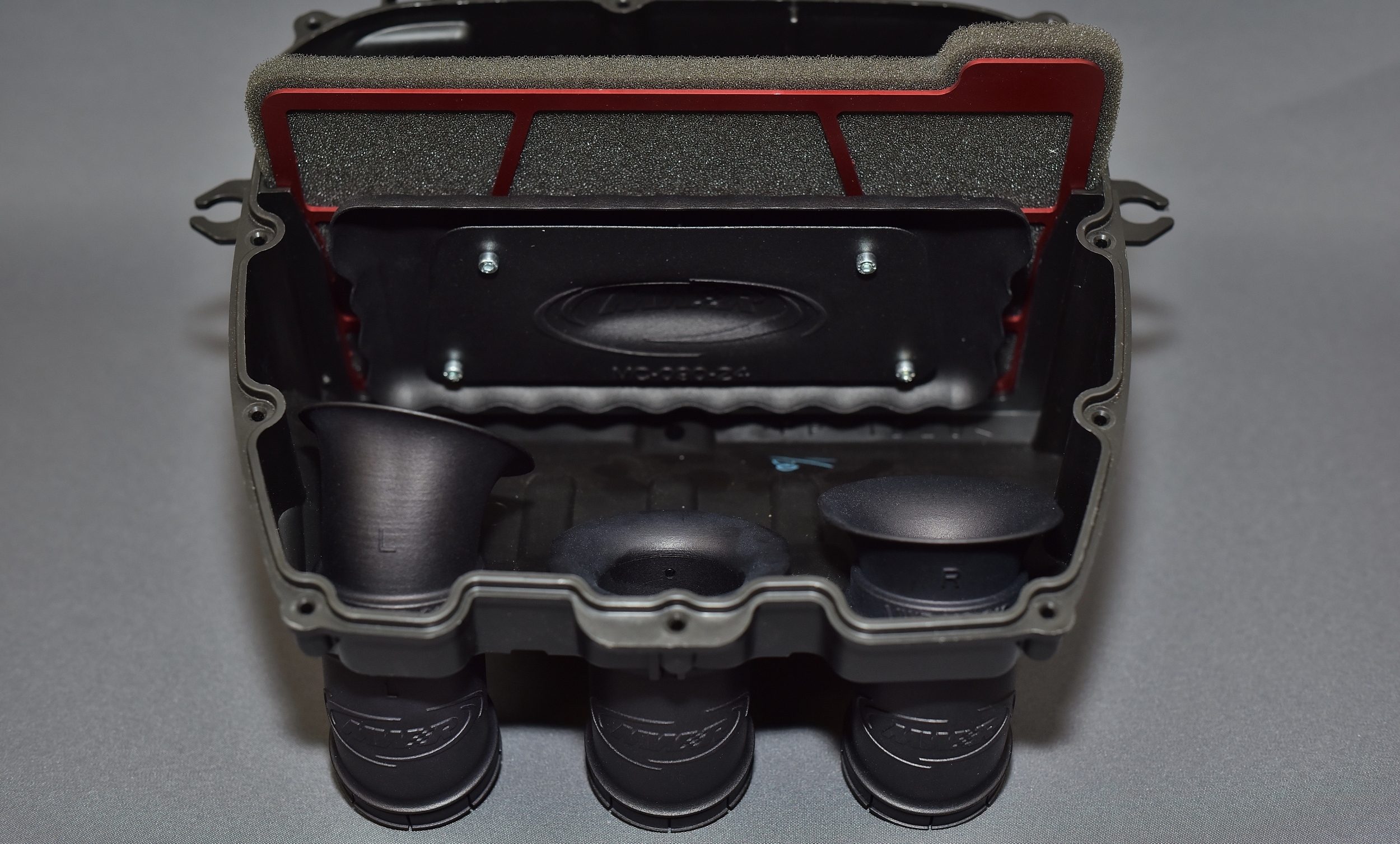

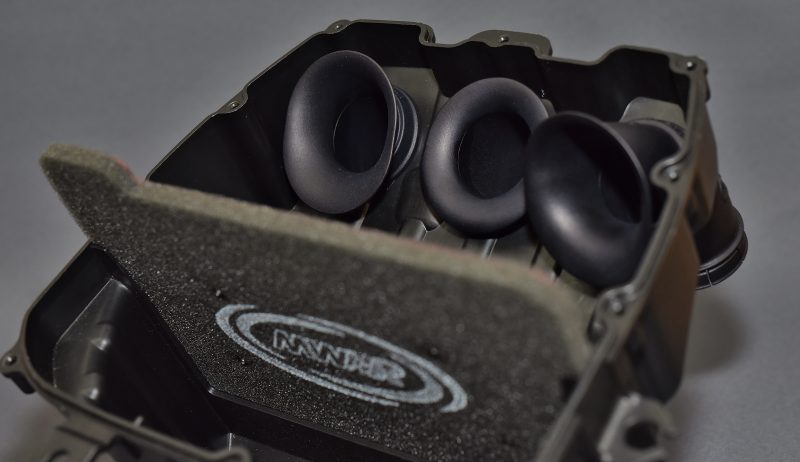

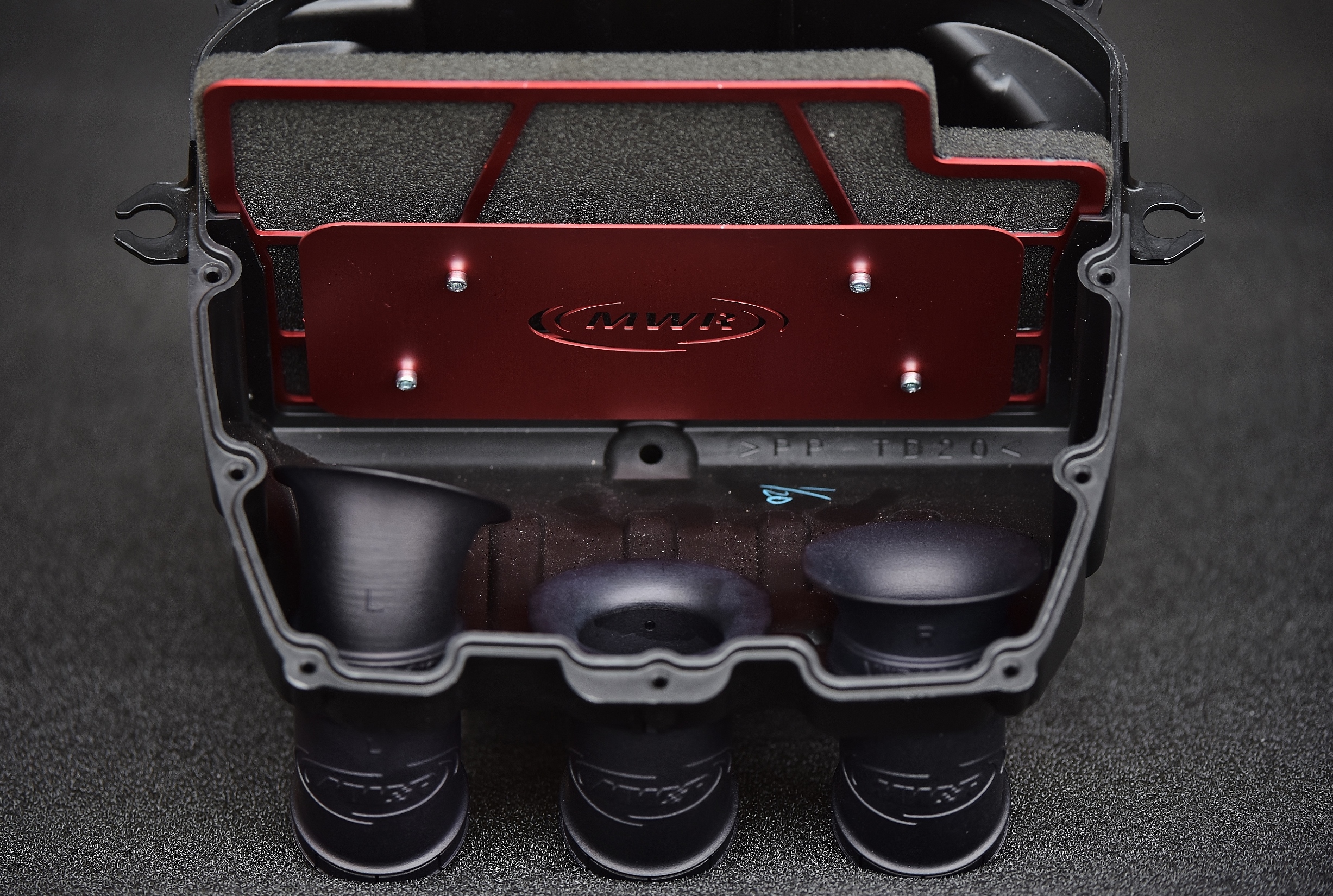

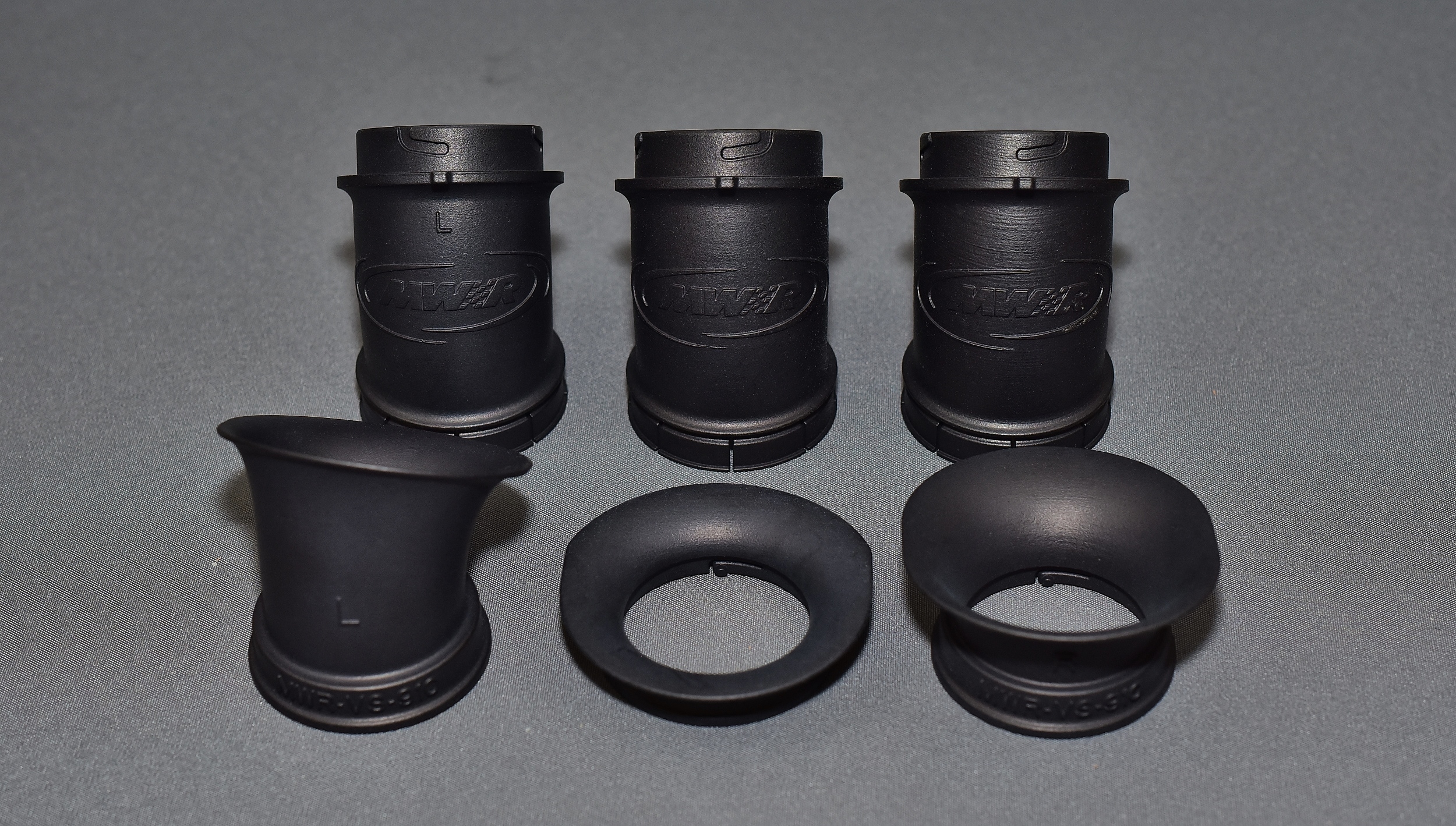

The Velocity Stacks are two-piece and able to attach them neatly and properly into the airbox, for this we have also designed a click system so that everything stays securely in place when mounted

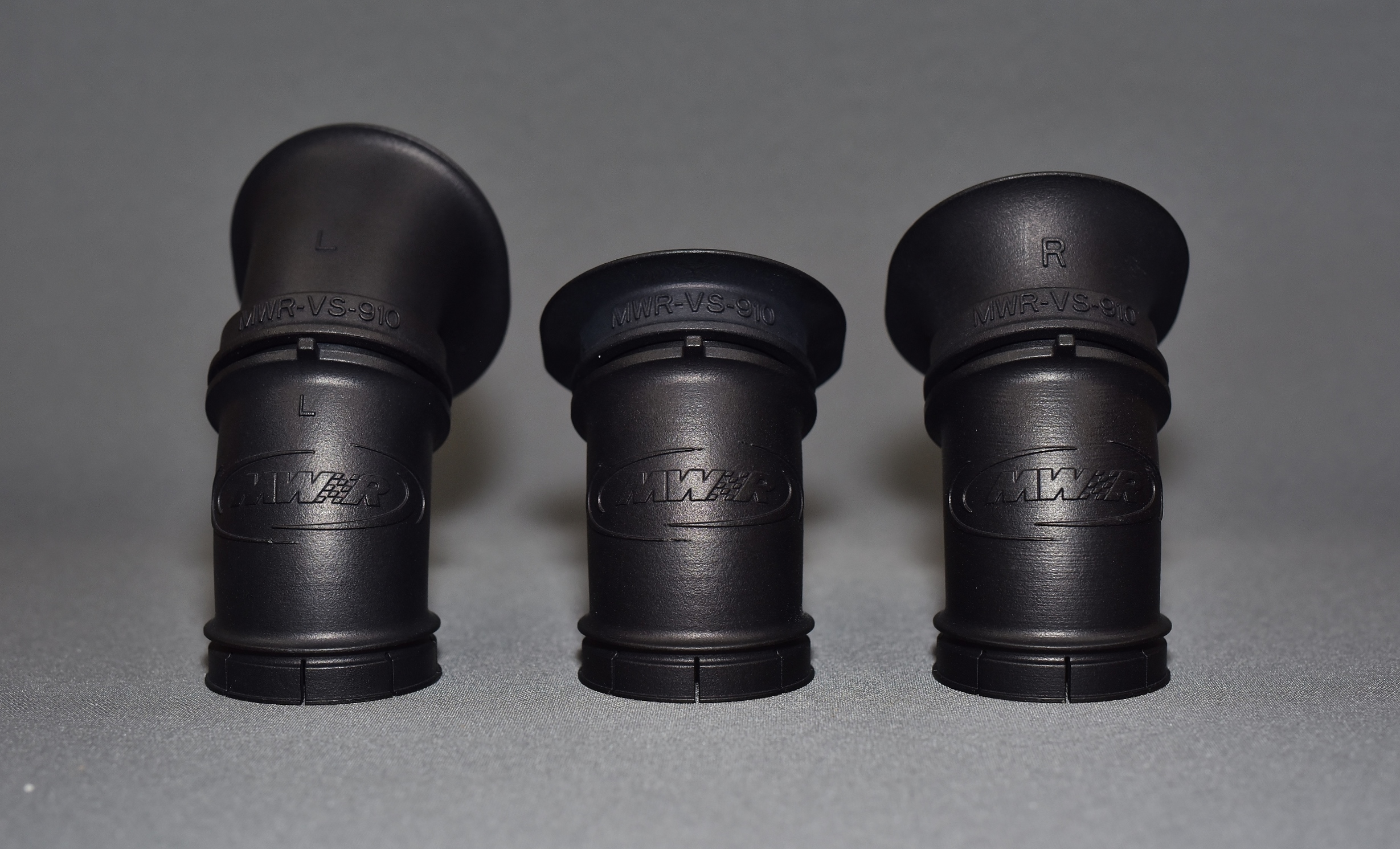

The set consists of three velocity stacks, 1x Right(R) 1x Middle(M) & 1x Left (L)

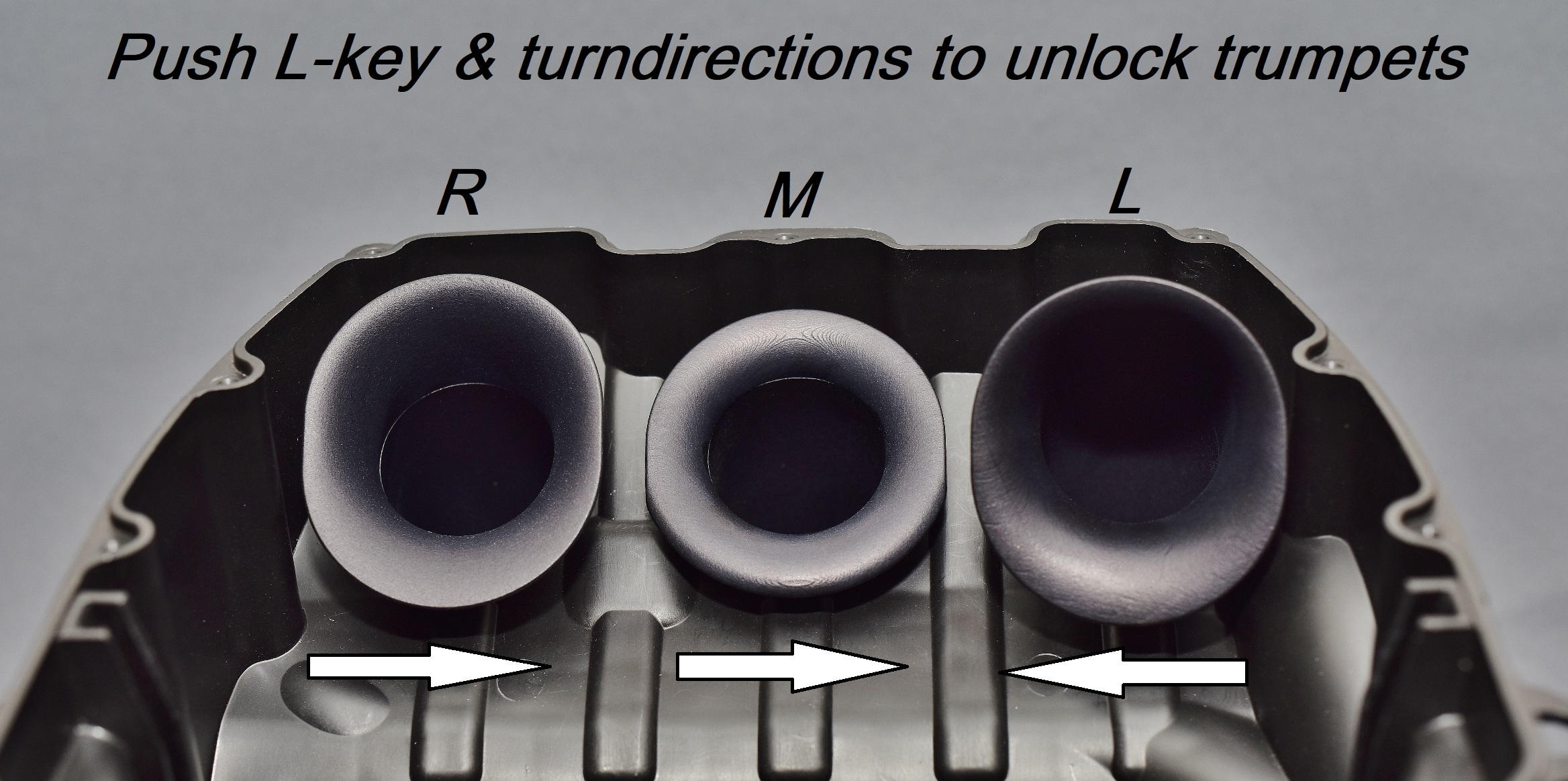

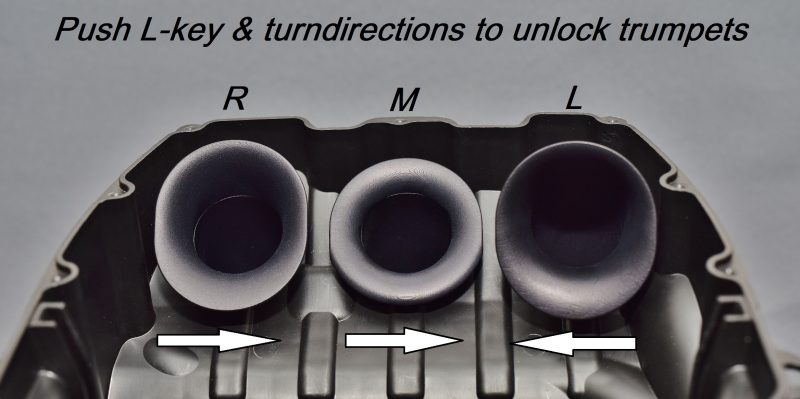

Instructions to unlock the trumpets :

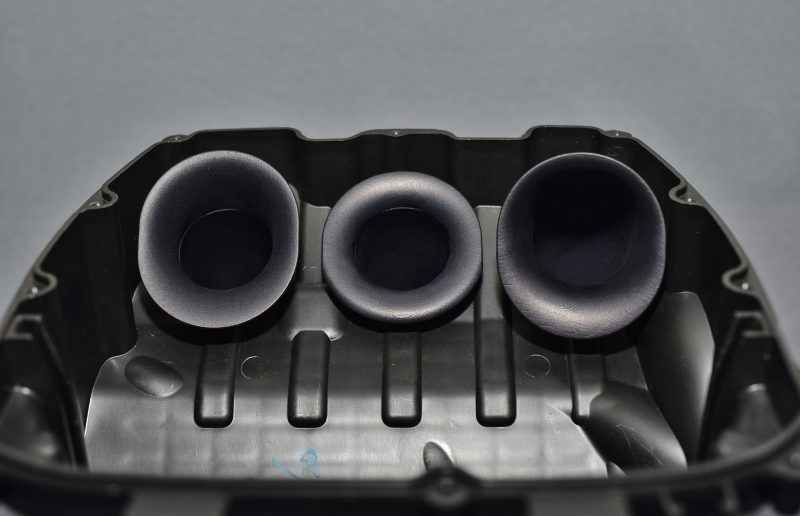

(L) trumpet must be placed on the left side , (R) trumpet on right side and the lowest trumpet in the middle .The stacks are two-piece and able to attach them neatly and properly into the airbox, for this we have also designed a click system so that everything stays securely in place when mounted. To unlock the trumpets you need an L-key or Allen key of 2.5 mm . On the inside of the trumpet you see a small hole, here you have to insert the L-key, now you have to push and turn at the same time , trumpet (L) clockwise and trumpets (R) & (M) counterclockwise.

Intructions to lock the trumpets:

Place a lip on the bottom half in the slot of the airbox for centralization in the middle. Place the top half with the pins in the slots and turn until you hear and feel the click. Tighten trumpet (L) counterclockwise and trumpet (R) & (M) clockwise

No Modifications needed
